Diaform Pantograph Dressers

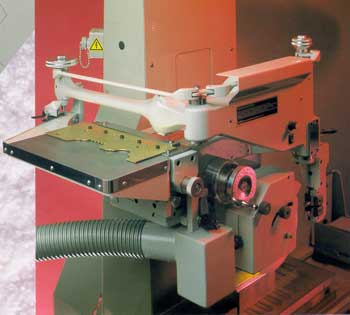

Diaform dressers can be portable or fixed, head or table mounted onto a wide range of grinding machines, including most types of surface, cylindrical, special purpose or wheel forming machines. Dresser adaptors and mountings are designed to accurately position the Diaform without restricting the function or performance of the host grinding machine.

The Diaform range of dressers produce high precision components quickly, in the case of ‘one offs’ and consistently for production runs, without the need for additional setting up. Complex and deep forms can be produced and form relief and top rake angle compensation, used in the production of cutting tools, can be achieved without the need for modified templates.

We are the national service agent for Diaform Pantograph Dressers.

Diaform model specifications

Model Pantograph Forming Capacity
Portable 10:1 or 5:1 Portable
Available on Request
5/1
5/2
5/50
5/4
10:1
5:1
10:1
5:1
25 x 12.5mm / 1 x 1/2"
50 x 25mm / 2 x 1"
50 x 25mm / 2 x 1"
100 x 40mm / 4 x 1 1/2"
6/1
6/2
6/4
10:1
5:1
5:1
25 x 12.5mm / 1 x 1/2"
50 x 25mm / 2 x 1"
100 x 40mm / 4 x 1 1/2"
8/1
8/2
10:1
5:1
25 x 12.5mm / 1 x 1/2"
50 x 25mm / 2 x 1"
12/1
12/2
12/4
10:1
5:1
5:1
25 x 12.5mm / 1 x 1/2"
50 x 25mm / 2 x 1"
100 x 40mm / 4 x 1 1/2"
16/1
16/2
10:1
5:1
25 x 12.5mm / 1 x 1/2"
50 x 25mm / 2 x 1"

Installation Questionaires

Cylindrical grinder installation questionnaire

Surface grinder installation questionnaire
