Diaform Service and Repair

Diaform is a pantograph template tracing grinding wheel profile dresser that mounts on a grinding machine to perform complex form dressing in minutes and with minimal cost. The pantograph is a reduction ratio of 10:1 or 5:1 from template to grinding wheel (depending on model) that ensures close tolerance accuracy.

Crystal Associates is the national service agent for Diaform Pantograph grinding wheel profile dressers

While new Diaform pantograph grinding wheel dressers are no longer available, we offer Diaform services that include the following:

  • Sale of used, reconditioned Diaform units
  • Repair parts, adapters and telescopic wheel guards for various grinder installations
  • Diaform operation, installation and service manuals
  • Repair and service either at your location at our shop
  • Installation of Diaform dresser on your grinding machine
  • Operator training at your facility

We buy and sell used Diaform dressers

What are the advantages of using Diaform?

  • Precision Accuracy relies on that of the template and pantograph reduction ratio of 10:1 or 5:1 [depending upon model], not a visual line of shadow.
  • Repetitive Consistent forms from dress to dress. Templates are retained for repeat jobs.
  • Efficient Multiple profiles, such as tooth forms, can be done in one setup without pitching over
  • Flexible Changing profiles is simply a matter of changing to a different template
  • Versatile Rake angle compensation of ground profile is available on most models
  • Lead time It is ready when you need it. No waiting for expensive diamond rolls of dressing blocks
  • Capacity Dress wheels up to 2” wide

Models for Surface Grinding

Model Series 5 Diaform are mounted on the spindle head, above and out of the way of the grinding zone providing fast and easy grinding wheel redress without disturbing work on the grinder table.

Model Series AT Diaform are used on the grinder work table, requiring work to be removed from the table for wheel redress. However, then AT dresser can be used on any surface grinder offering greater versatility than a permanent mount Diaform.

Models for Cylindrical Grinding

Model 8 series Diaform is mounted on the grinding wheel spindle head of a cylindrical grinder via an adapter. This location does not interfere with the grinding zone allowing the operator to dress the grinding wheel without disturbing the work grinding setup. Redressing is accomplished quickly and easily between grinding cycles.

Model 12 series Diaform is mounted, with an infeed carriage, on the table of a cylindrical grinder (plane, universal, internal or external) usually to the right of the tailstock. When redressing is needed, the table is moved to position the Diaform in front of the grinding wheel.


We also sell new and repair Diaform diamond dressing tools. Please see the accompanying product page for available tools.

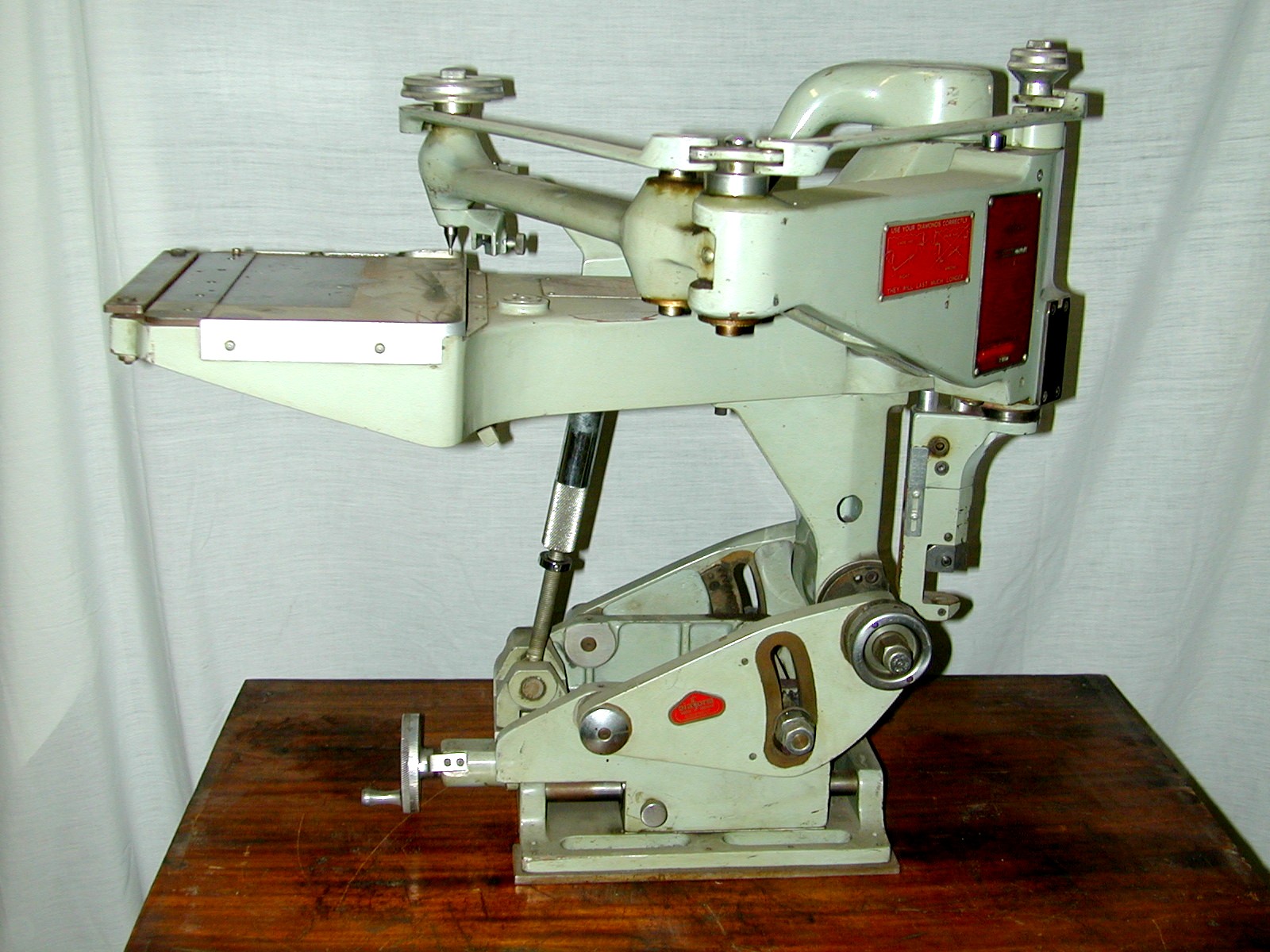

Model 10/2 Diaform Model 10/2 Diaform

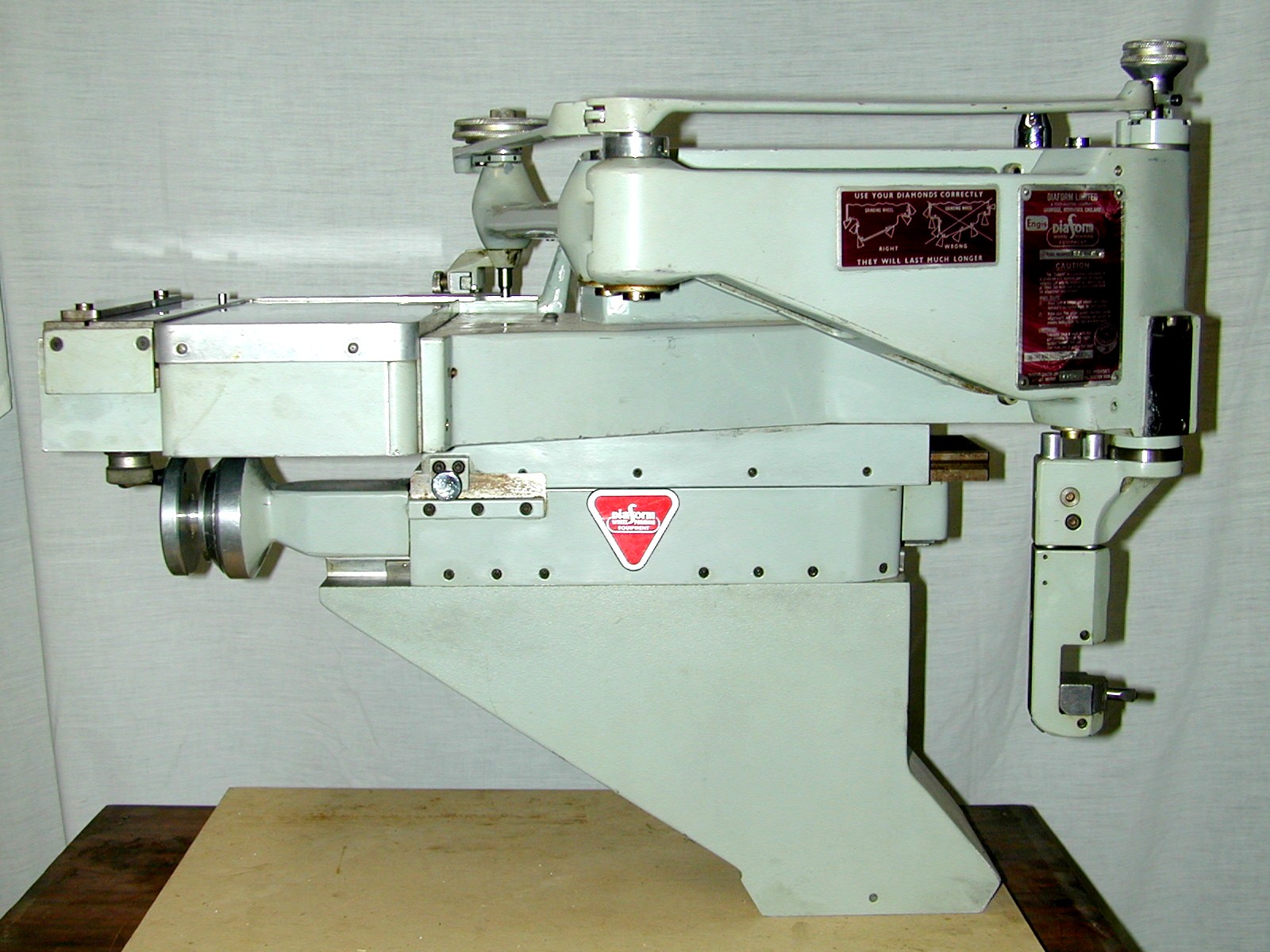

Model 12/1 Diaform Model 12/1 Diaform

Model 6/1 Diaform Wheel forming machine Model 6/1 Diaform Wheel forming machine

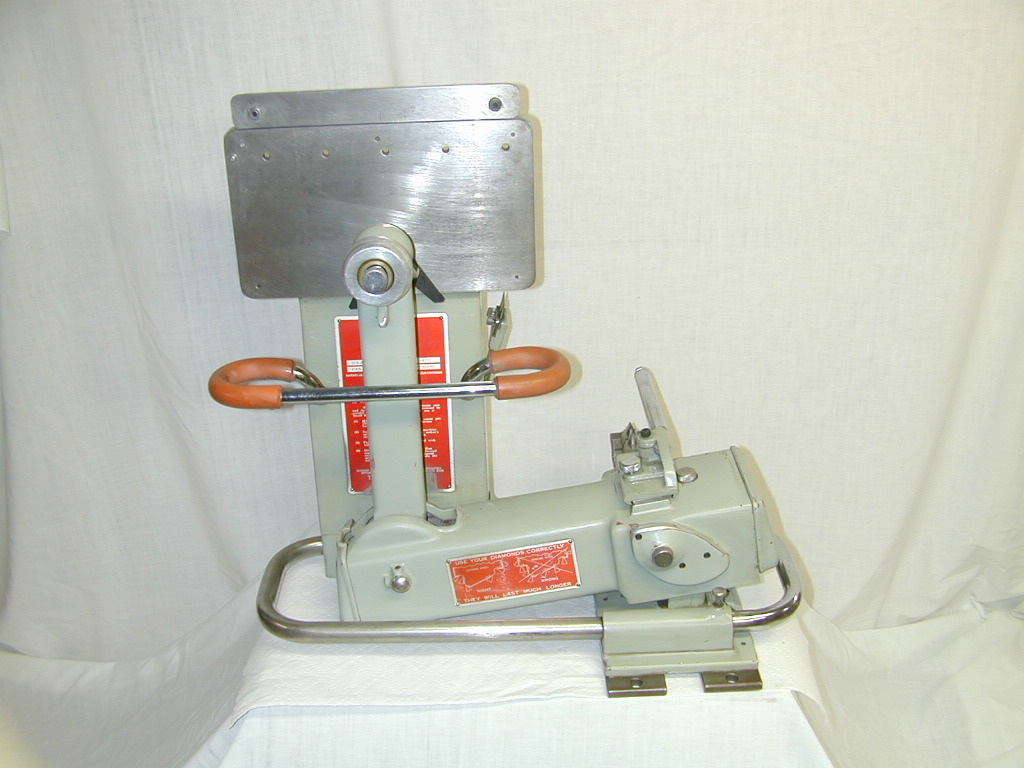

Model AT Diaform Model AT Diaform

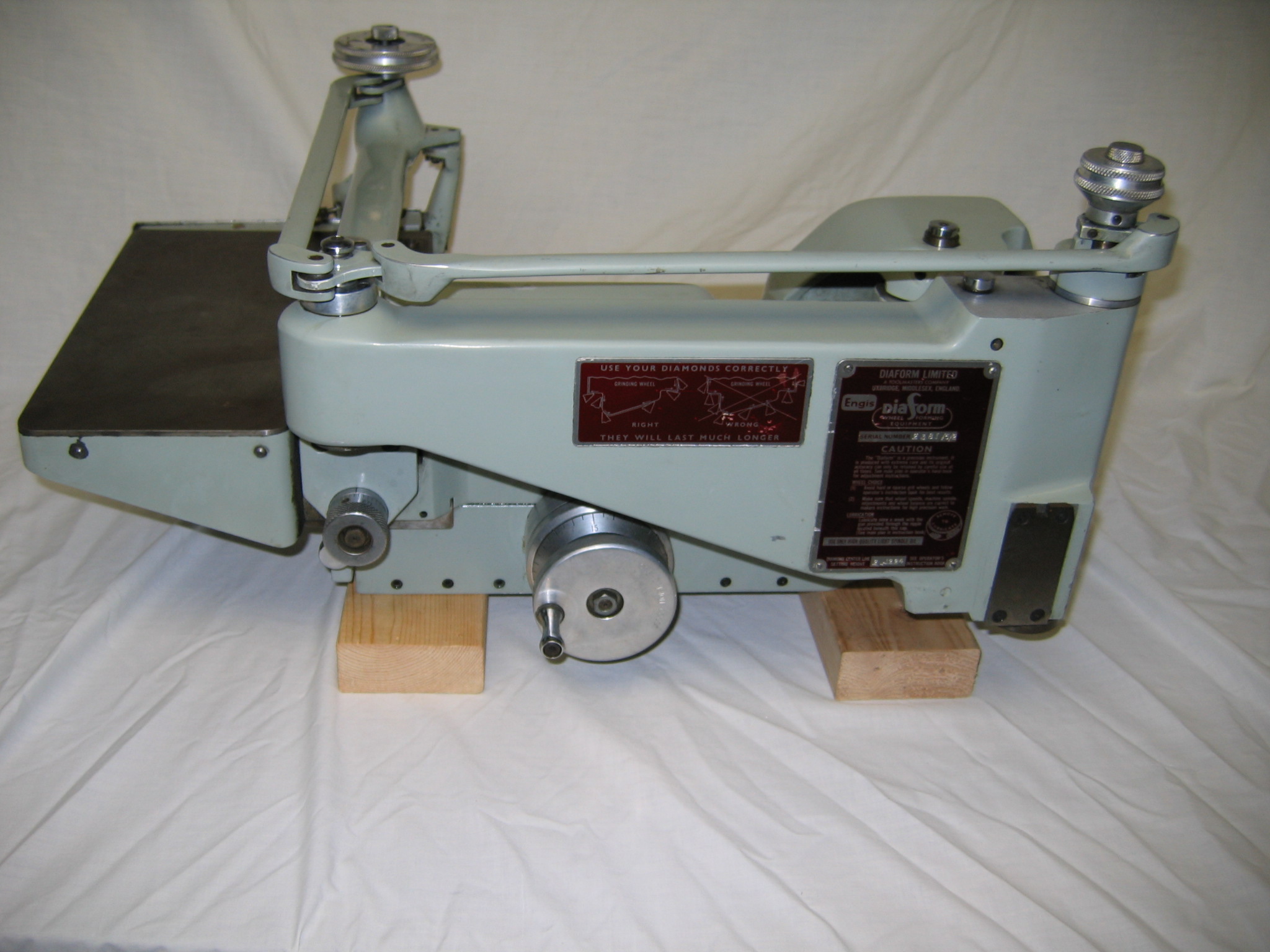

Model 5/2 Diaform Model 5/2 Diaform

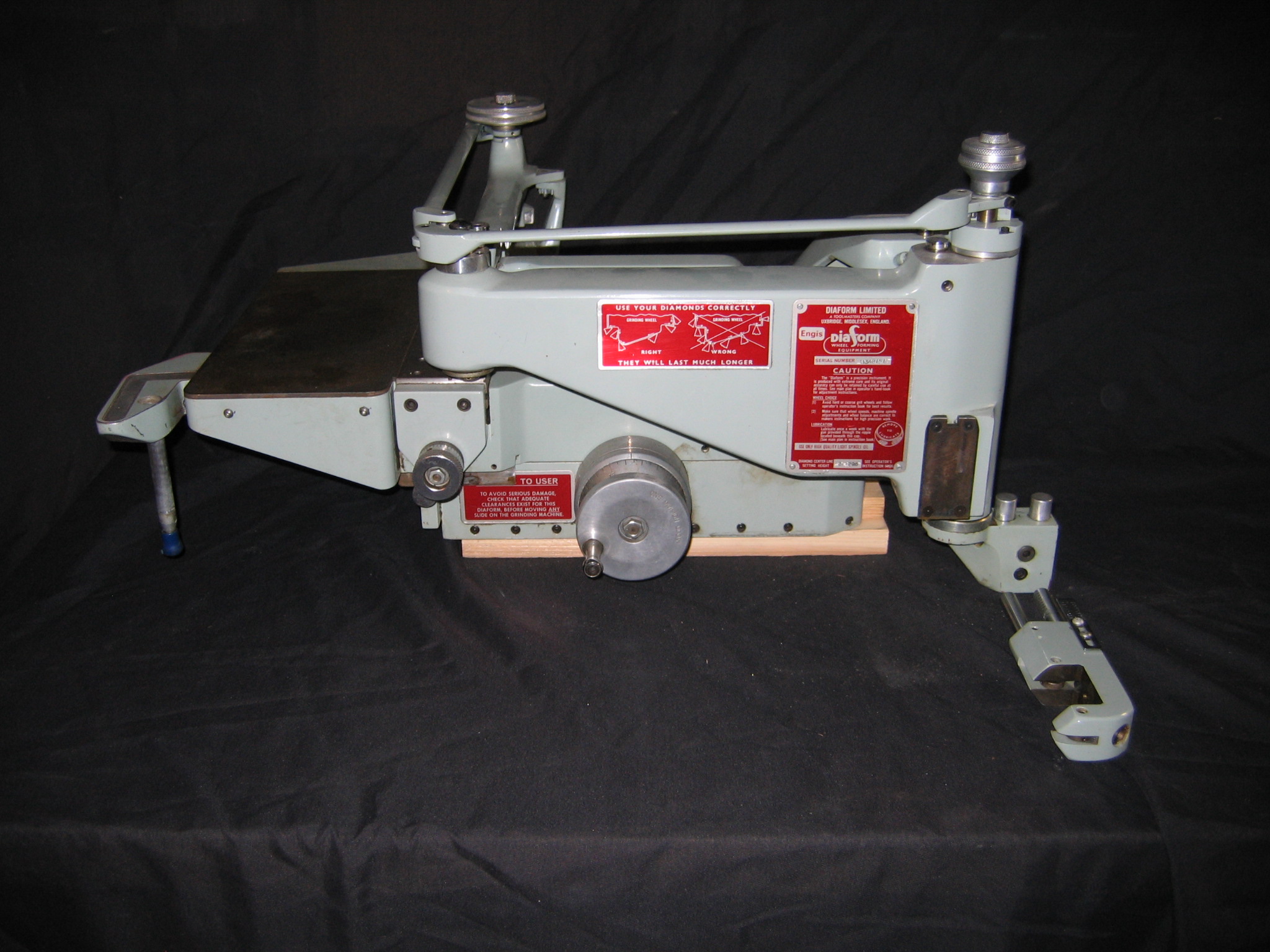

Model 5/1 Diaform Model 5/1 Diaform

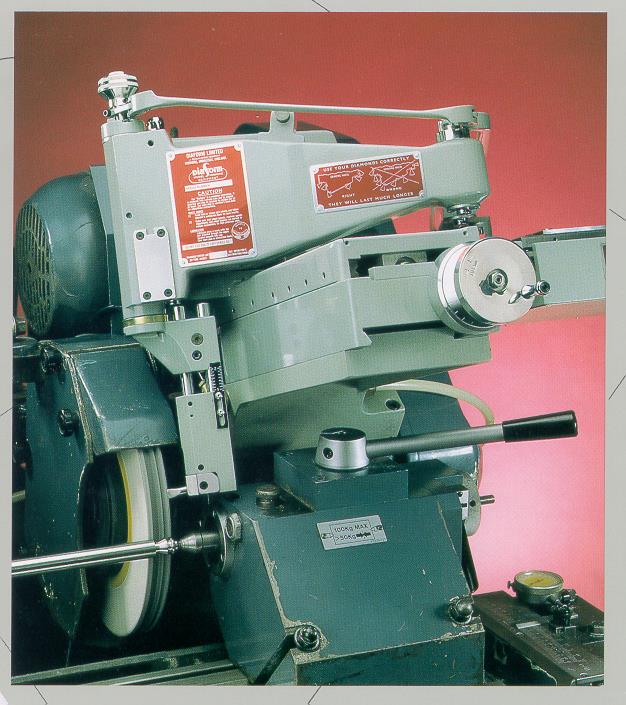

Model 8/1 Diaform on J&S Grinder Model 8/1 Diaform on J&S Grinder

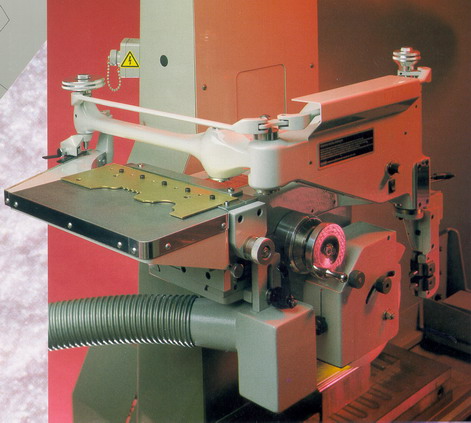

Diaform Model 5 mounted on surface grinder

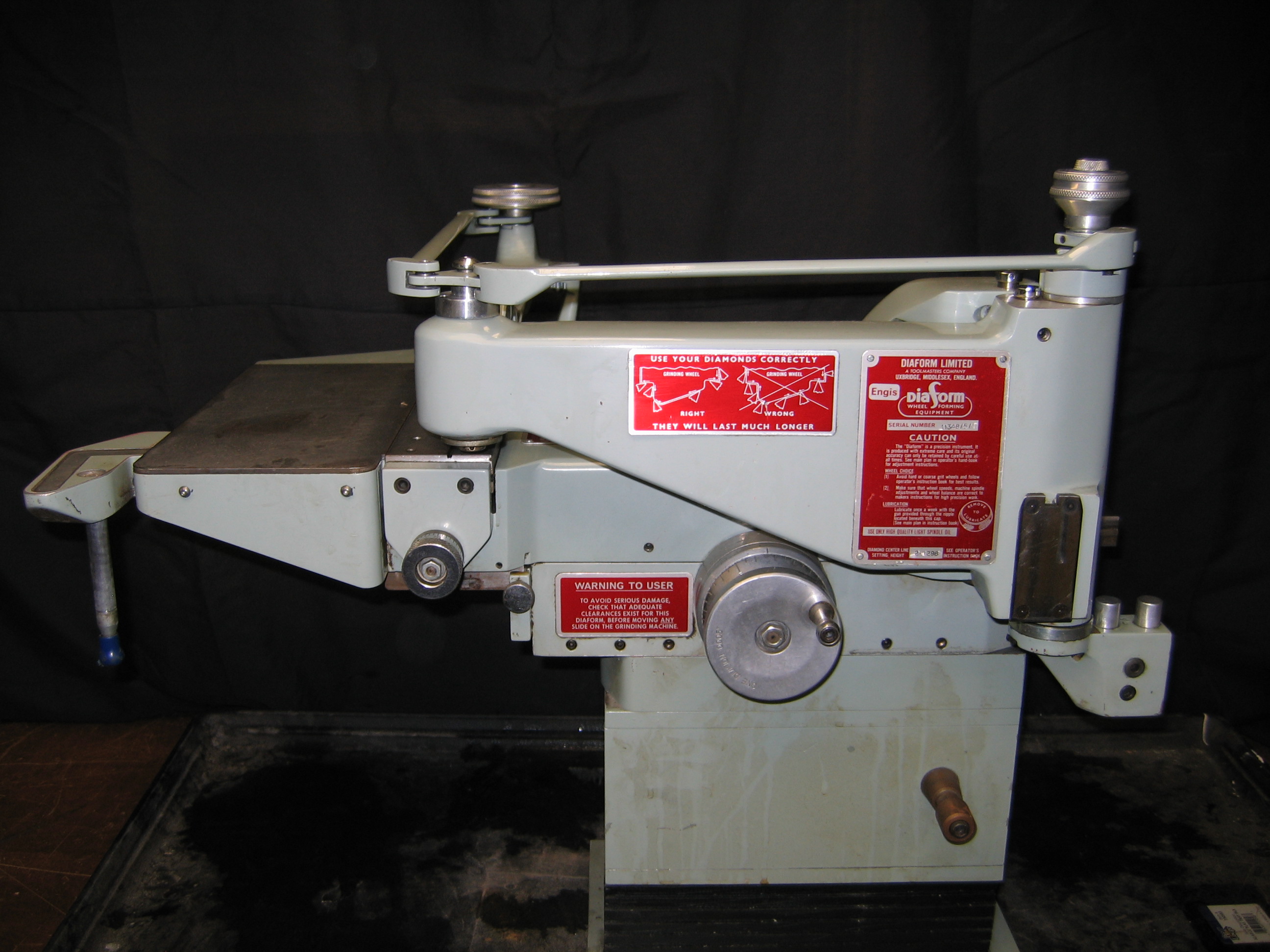

Reconditioned Used Model 5 Diaform
