Custom Form Wheels

Custom Diamond or CBN Form Grinding Wheels are electroplated with a single layer of abrasive. They are best used for production form grinding of hard materials, not easily ground with conventional abrasives. This type of wheel needs no dressing, as they are recycled when worn out by being stripped and re-plated.

Examples

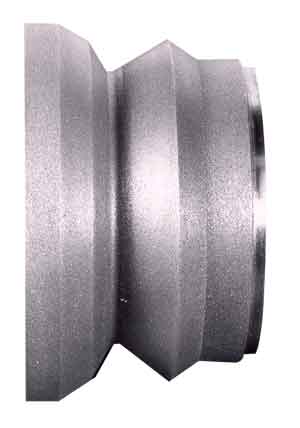

Typical diamond plated form wheel.

Diamond plated wheel used to grind ceramic components.

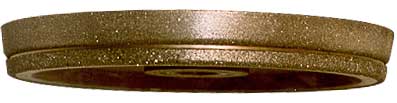

Dual grit diamond plated wheel used to grind rubber rolls.

Diamond plated wheel used to grind ceramic.

Diamond plated wheel used to grind carbide cutting inserts.

Diamond plated wheel used to grind automotive spark plugs.

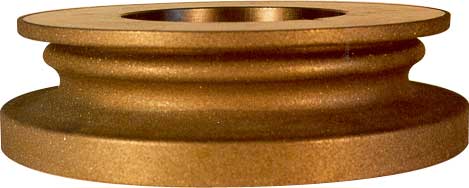

Diamond plated form wheel used to grind ceramic insulators.

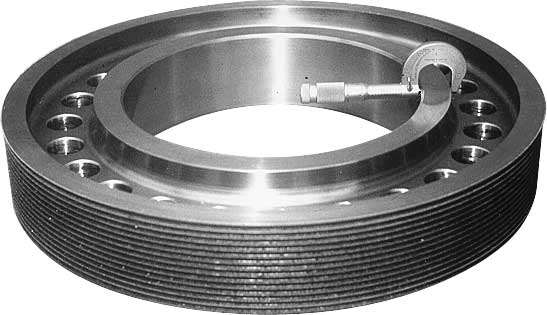

18" diameter plated CBN grinding wheel used to grind saber saw blades.
